SINEM Desamparados y Escuela Circense

Location
Patarrá, Desamparados, Costa Rica
Year
2009
Status
Project
Area
8,015 m²
Sector
Educational · Public space, sports and institutional
Parque La Libertad after the interventionParque La Libertad before the interventionBeforeAfter

Slide to see the before and after.

Overview

SINEM Desamparados and the Escuela Circense are part of Parque La Libertad, a cultural complex set in a former concrete plant. The project reuses the abandoned structure, keeps the memory of the place and folds it into a program of culture, environment and entrepreneurship organized in four color sectors (purple, orange, yellow and green).

The two buildings are organized by two circulation axes, one longitudinal and one transverse. The transverse axis marks the main route. It starts at the entrance, joins the SINEM with the Escuela Circense and ends at the auditorium, where two reflecting pools frame the outdoor space. At the intersection, the lobby and the individual boxes seem to float and are reflected in the water. Vertical circulation consists of ramps with purple railings that organize classrooms and offices around the perimeter.

The existing structure drives the decisions of the project. The roof openings are kept to bring natural light into the central double height space. Permeable facades create cross ventilation and the lightweight panels of classrooms and halls allow changes over time. In front, an esplanade for concerts can be enjoyed from the plazas of the complex and from the second level walkway. At the back of the auditorium, the seating ends with a view of the existing trees.

Credits

Project promoter: Parque La Libertad
Architectural design: Luis Diego Barahona
Collaborator: Selni Hernández
Area: 8,015 m²

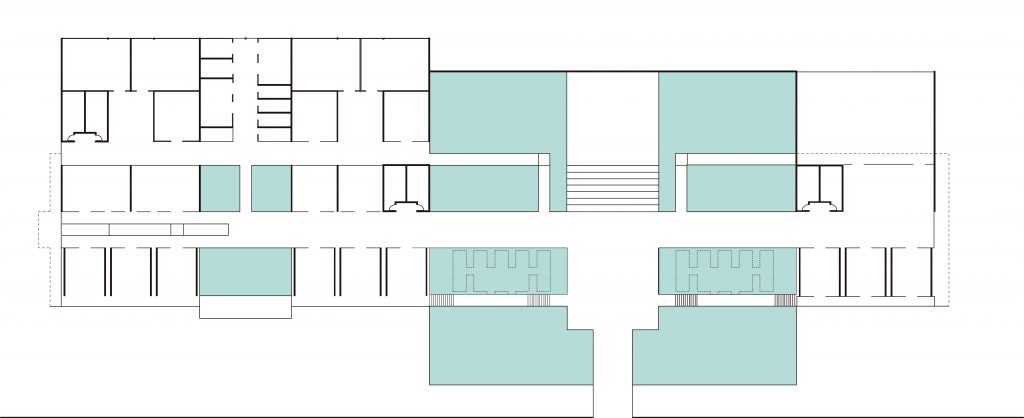

Drawings
